Prolink PBV4FB PBV50A | CSB GP1272 | CSB HR1234 VRLA Battery For Auto-Gate / UPS / Alarm System
These high-performance Valve Regulated Lead-Acid (VRLA) batteries are designed for "standby" power applications where reliability is critical. Whether you are backing up a security system or ensuring your automatic gate functions during a power cut, these batteries provide a stable 12V power source.

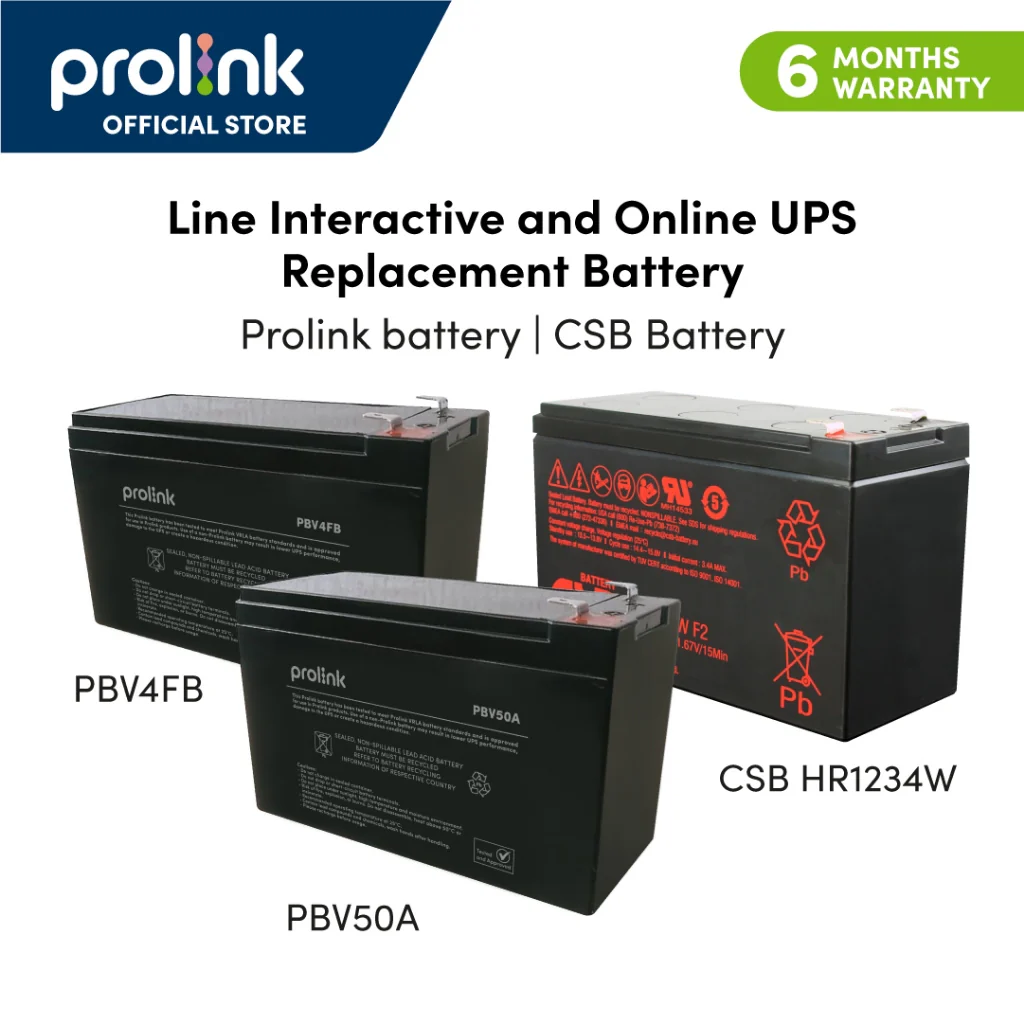

Comparison Summary
| Model | Voltage / Capacity | Primary Use Case | Key Advantage |
| Prolink PBV4FB / PBV50A | 12V 4.5Ah / 10Ah | UPS Systems & General Backup | High compatibility with Prolink SFC UPS range. |
| CSB GP1272 | 12V 7.2Ah | General Purpose / Standby | Long life (up to 5 years) and high reliability. |
| CSB HR1234 | 12V 34W (approx 9Ah) | High-Rate UPS Discharge | Optimized for high power output for short durations. |
Core Applications
1. Uninterruptible Power Supplies (UPS)
These batteries act as the energy reservoir for your PC or server backup.
-

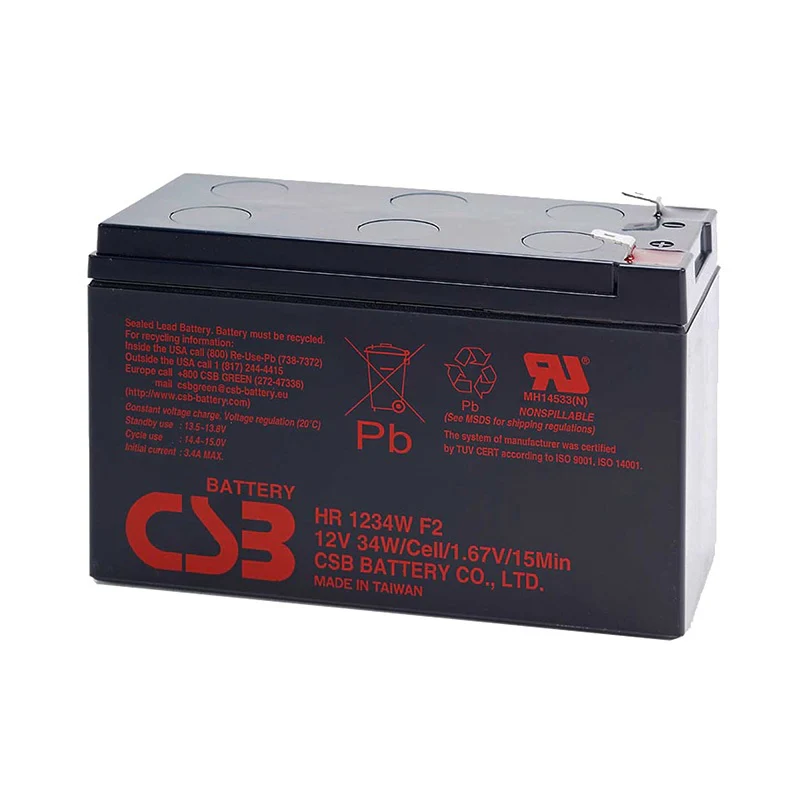

CSB HR1234 is specifically "High Rate," meaning it can deliver more power quickly—ideal for larger servers that need to stay online just long enough to shut down safely.
-

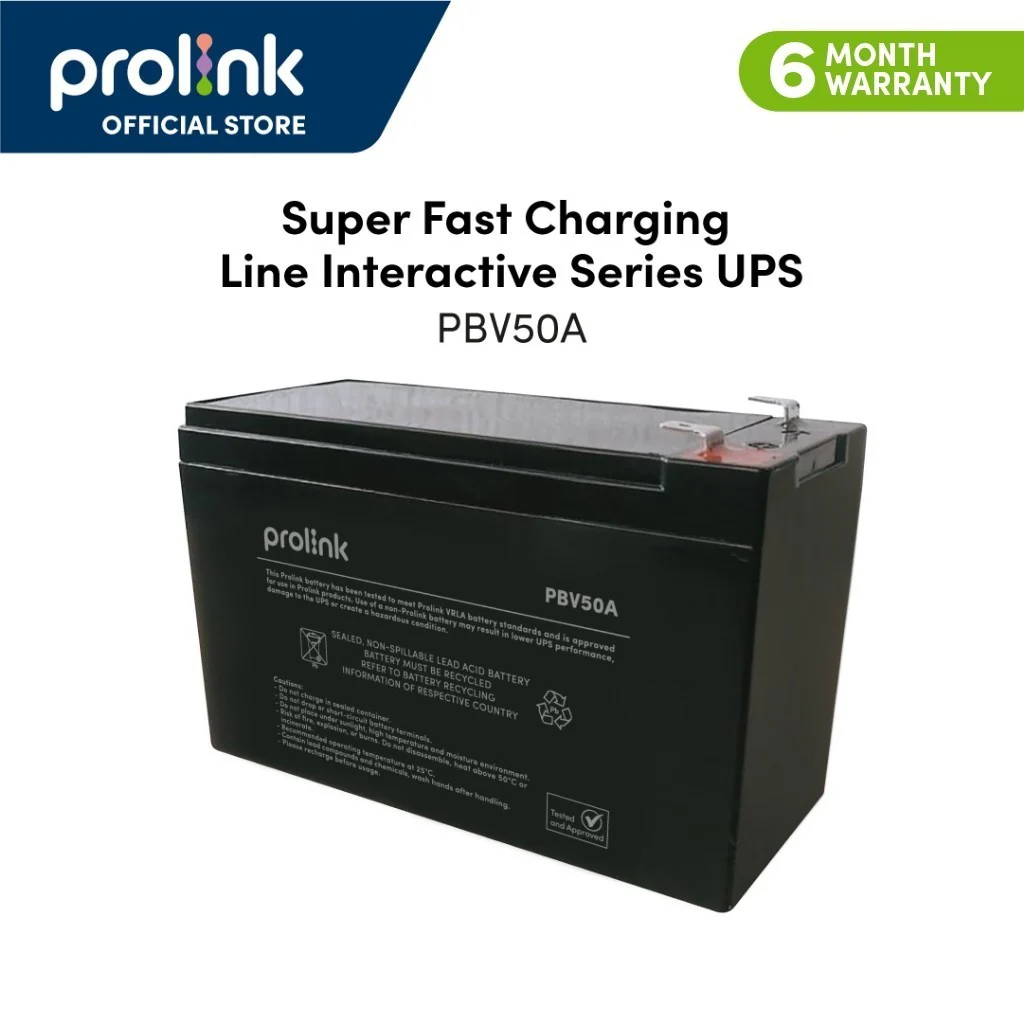

Prolink PBV50A (10Ah) offers an extended runtime compared to standard 7Ah batteries.
2. Automatic Gate Systems
Auto-gates rely on these batteries to operate when the mains power fails.
-
CSB GP1272 is a standard choice here due to its excellent recharge cycles and durability against outdoor temperature fluctuations.
3. Alarm & Security Systems
Security panels typically use the smaller 12V 4.5Ah (PBV4FB) or 12V 7.2Ah variants.
-
These systems require "float" charging, where the battery stays at 100% for long periods. These VRLA batteries are designed not to degrade under constant low-level charging.
Key Technical Features
-
Maintenance-Free: Utilizing AGM (Absorbent Glass Mat) technology, the acid is trapped in fiberglass mats, meaning you never need to add water and the battery will not leak.
-
Position-Insensitive: Because they are sealed, they can be installed sideways or upright (though inverted is generally not recommended).
-
Low Self-Discharge: These batteries can sit in storage for several months and still retain a significant charge.
Maintenance Tips for Longevity
-
Avoid Deep Discharge: Try not to let the battery run completely to 0%. Recharging when it hits 20–30% capacity will significantly extend its lifespan.
-
Keep it Cool: Every 10°C increase in average ambient temperature above 25°C can halve the life of a VRLA battery.
-
Matching Replacements: If your UPS or Gate system uses two batteries in a series, always replace both at the same time to prevent the older battery from damaging the new one.
