Prolink DS-3308 Smart Zigbee PIR Motion Sensor - Real-time Alerts | Zigbee Hub, White
Decsription
DS-3308
Smart Zigbee PIR Motion Sensor
Automate Your Smart Home with Motion. The Prolink Zigbee PIR Motion Sensor offers accurate and low-power motion sensing, seamlessly integrating with your Zigbee network for reliable automation and security.
Zigbee Hub is required.
Features
At a glance
Zigbee 3.0 compatible
Ultra-low power consumption
Battery powered
Energy saving
Wide detection range
Tech Specs
|
Communication |
Zigbee 3.0 |
|
Voltage |
1.8 - 3.6V |
|
Power Requirement |

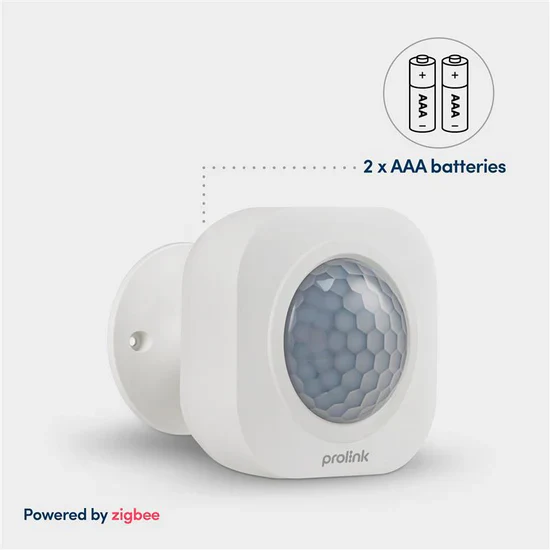

AAA x 2 Battery |
|
Standby Current |
< 18uA |
|
Alarm Current |
< 3mA |
|
Zigbee operating channel and frequency |
11 - 26 @ 2.400 - 2.483GHz |
|
Induction Range |
Up to 9 Meter , 128 degree |
|
Wireless Standard |
IEEE 802.15.4 |
|
Antenna Type |
PCB antenna, antenna gain 1dBi |
|
LED Indicator |
White |
|
Operating Temperature and Humidity |
0°C to +50°C; 10% to 85%RH |
|
Storage Temperature and Humidity |
0°C to +70°C; 5% to 95%RH non-condensing
|
|
Suggested Distance With Hub |
Up to 10 Meter ( Please check signal strength in Hub UI) |
Dimensions
|
Dimensions |
Product 58mm x 58mm x 62mm
|
