Prolink CAT5E/24P Plus Series 4-Pair UTP Network Cable 24AWG 100MHz, 0.51mm, Grey, 305m
DESCRIPTION
CAT5E/24P
CAT5E 24P Plus Series
The Cat5E 24P Plus series is designed for your LAN networking needs.
UTP 24AWG 100MHz cable
FEATURES
At a glance
Transmission bandwidth of 100 MHz
Supports 10 Base-T, 100Base-TX or 1000Base-TX network
High signal-to-noise ratio
Thick conductor diameter
TECH SPECS
|
UTP category |
Cat 5e |
|

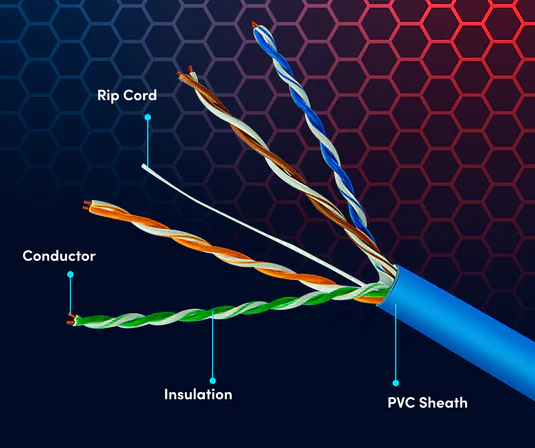

Conductor construction |
0.51±0.01mm/ 24 AWG (4 pair) |
|
Conductor insulation |
High density polyethylene |
|
Conductor insulation diameter |
0.93mm ± 0.02mm |
|
Pairs |
2 insulated conductors twisted together |
|
Insulation Colour |
A. White/Blue Stripe & Blue B. White/Orange Stripe & Orange C. White/Green Stripe & Green D. White/Brown Stripe & Brown
|
|
Characteristic impedance |
64kHz: 125Ω±20% 1-250MHz: 100Ω±15%
|
|
Conductor resistance |
MAX 18Ω/100m at 20°C |
|
Insulation resistance |
Min150MΩ/KM |
|
Mutual capacitance |
Max 5600pf/100M |
|
Resistance unbalance |
Max 300pf/100MM, Max 5% |
|
Certifications |
Fluke test passed |
Dimensions and Weight
|
Dimensions |
Product NA With packaging 360mm (L) x 360mm (W) x 220mm (H)
|
|
Weight |
Product 7.56Kg With packaging 8.28Kg
|
Original: $61.85
-65%$61.85
$21.65Product Information
