IPC-EBW5641P-AS IP FISHEYE CAMERA 6MP 360 WIZMIND 15M

IPC-EBW5641P-AS IP FISHEYE CAMERA 6MP 360 WIZMIND 15M

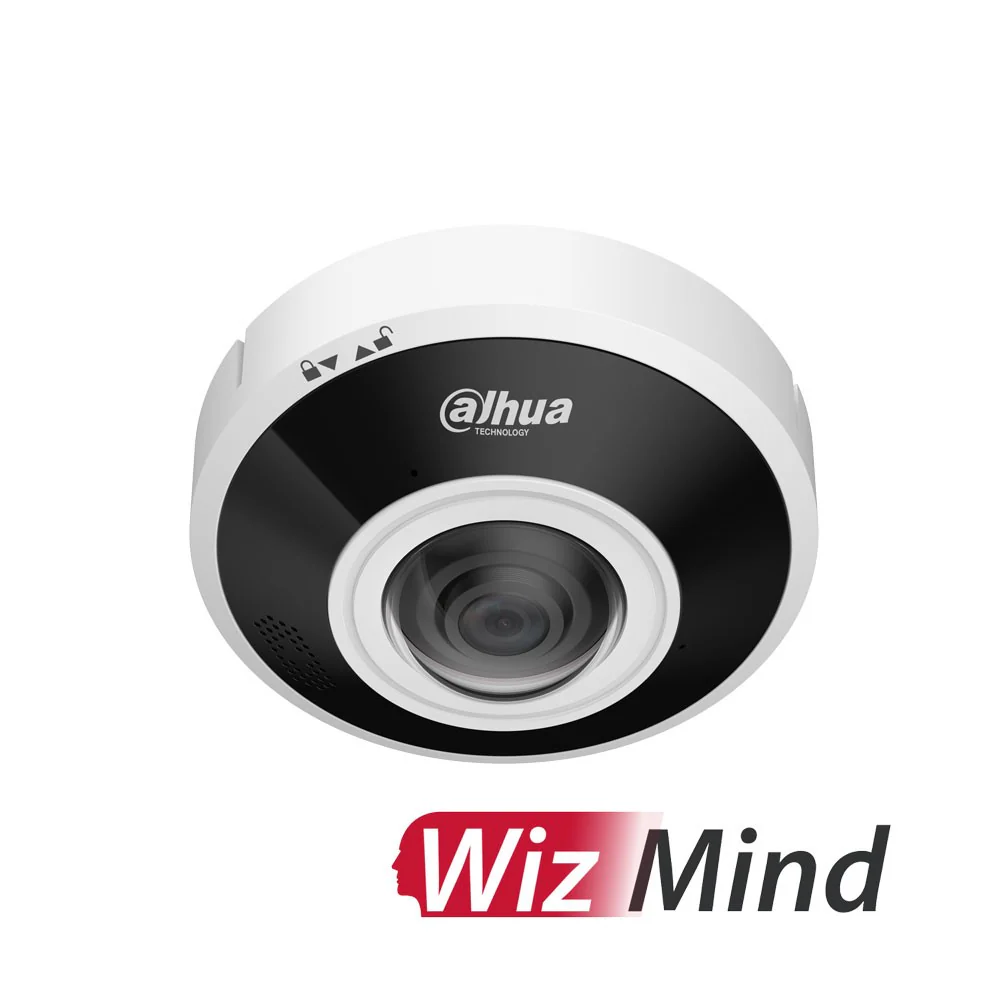

Dahua EBW5641-AS 6MP WizMind Fisheye IP Camera For 360 Degree Intelligent Surveillance

---

The Dahua EBW5641-AS is a professional fisheye network camera created for complete area monitoring from a single mounting point. Designed within the WizMind AI product family, it combines panoramic imaging, advanced analytics and robust construction to support demanding security and business intelligence tasks.

The camera is equipped with a 6 megapixel 1/2.5 inch CMOS sensor that delivers detailed square-format video with a maximum resolution of 2560 × 2560 at up to 30 frames per second. Its fisheye lens provides full 360 degree visibility, eliminating blind zones and reducing the number of cameras required to cover large indoor or outdoor spaces.

Advanced Fisheye Image Processing

Integrated Fisheye VR technology enables dynamic visualization of panoramic scenes. Operators can switch between multiple display modes, including original, bowl, cylindrical and asteroid views, allowing flexible interaction with the live image and recorded footage depending on monitoring needs.

Hardware-based front and back dewarping corrects optical distortion caused by the fisheye lens. These dewarping modes adapt to different installation positions and output corrected video streams directly, simplifying system configuration and compatibility with third-party platforms.

AI Analytics For Crowd And Area Management

Powered by deep learning algorithms, the EBW5641-AS supports intelligent functions such as people counting, heat map analysis and perimeter protection. People counting accurately tracks entry, exit and occupancy within defined zones, providing reliable data for operational reporting.

Queue management functionality monitors selected areas in real time and triggers alerts when predefined thresholds for waiting time or crowd density are exceeded. Heat map visualization highlights movement patterns and crowd concentration using color-based analysis, supporting data-driven space optimization.

Night Operation, Audio And Storage Options

Built-in infrared illumination enables effective monitoring in low-light conditions with a night vision range of up to 15 meters. Dual microphones and an integrated speaker allow two-way audio communication, adding an interactive layer to security and service applications.

The camera supports AI-optimized H.264 and H.265 compression to reduce bandwidth usage and storage consumption while maintaining image detail. Local video storage is available via a microSD card slot supporting capacities of up to 1 TB.

Durable Construction And Environmental Protection

The enclosure is engineered for long-term operation in challenging environments. IP67 certification protects against dust and water ingress, while IK10 impact resistance safeguards the device from vandalism. Wide voltage tolerance ensures stable performance in locations with fluctuating power conditions.

Key Technical Highlights

• 6 MP fisheye IP camera with full 360 degree coverage
• Maximum output resolution of 2560 × 2560 at up to 30 fps
• Interactive fisheye VR viewing modes
• Hardware-based front and back dewarping
• AI functions including people counting, heat map and perimeter protection
• Queue management with configurable alert thresholds
• Infrared night illumination up to 15 meters
• Two-way audio via built-in speaker and dual microphones
• AI H.264 and H.265 compression with ROI support
• MicroSD storage support up to 1 TB
• IP67 and IK10 rated housing with wide voltage tolerance
