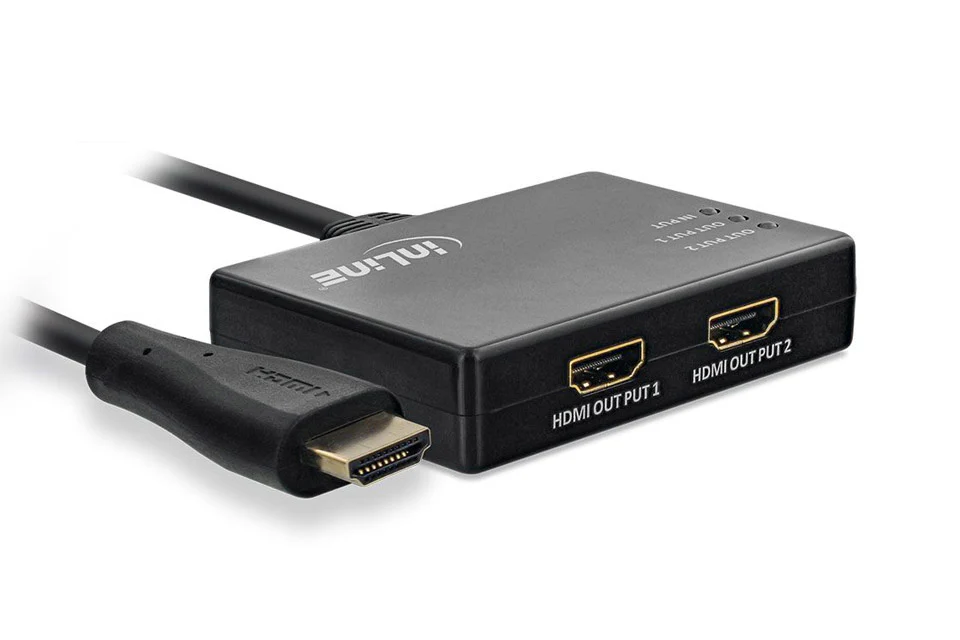

HDMI Splitter 1x2 (High-Speed Duplicator) | Green Box Edition
The HDMI Splitter 1x2 (Green Box) is a reliable and straightforward solution for duplicating a single HDMI signal onto two separate displays. Whether you want to share a satellite box feed between two rooms or display a presentation on two monitors simultaneously, this compact splitter ensures consistent, high-quality video and audio transmission without signal loss.
Its "plug-and-play" design makes it an essential tool for home entertainment systems, retail displays, and office environments.
Key Features
-
1-In 2-Out Signal Duplication: Take one HDMI source (Laptop, Gaming Console, DVD Player, CCTV DVR) and display it on two TVs, monitors, or projectors at once.
-
Full HD & 4K Support: Engineered to handle high-definition resolutions, ensuring crisp visuals and vibrant colors across both connected screens.
-
Synchronized Audio & Video: Supports advanced audio formats, including DTS-HD, Dolby-TrueHD, and LPCM7.1, keeping sound perfectly in sync with the picture.
-
Signal Buffering & Amplification: Features built-in signal boosting, allowing for long HDMI cable runs without flickering or degradation.
-

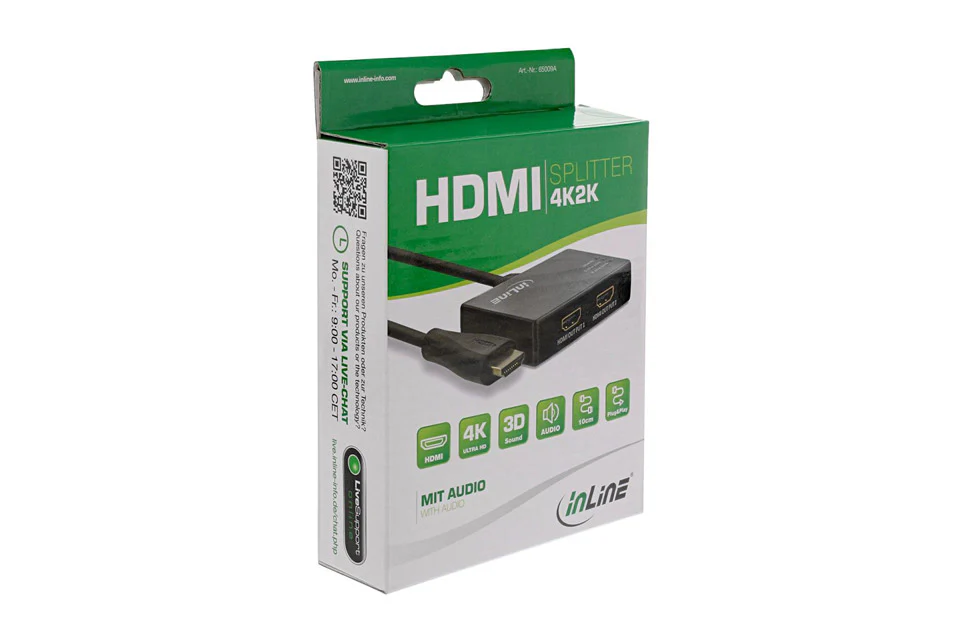

Compact & Durable Design: Housed in a sturdy, heat-dissipating casing (Green Box packaging) designed for 24/7 operation.
-
Automatic EDID Management: Automatically detects the resolution of your displays to provide the most compatible output for both screens.
Technical Specifications
| Feature | Details |
| Barcode | 5100760002308 |
| Interface | 1 x HDMI Input (Female), 2 x HDMI Output (Female) |
| Resolution Support | 4K @ 30Hz, 1080p Full HD, 720p, and 3D |
| HDMI Version | HDMI 1.4b (Backwards compatible) |
| HDCP Version | HDCP 1.4 Compliant |

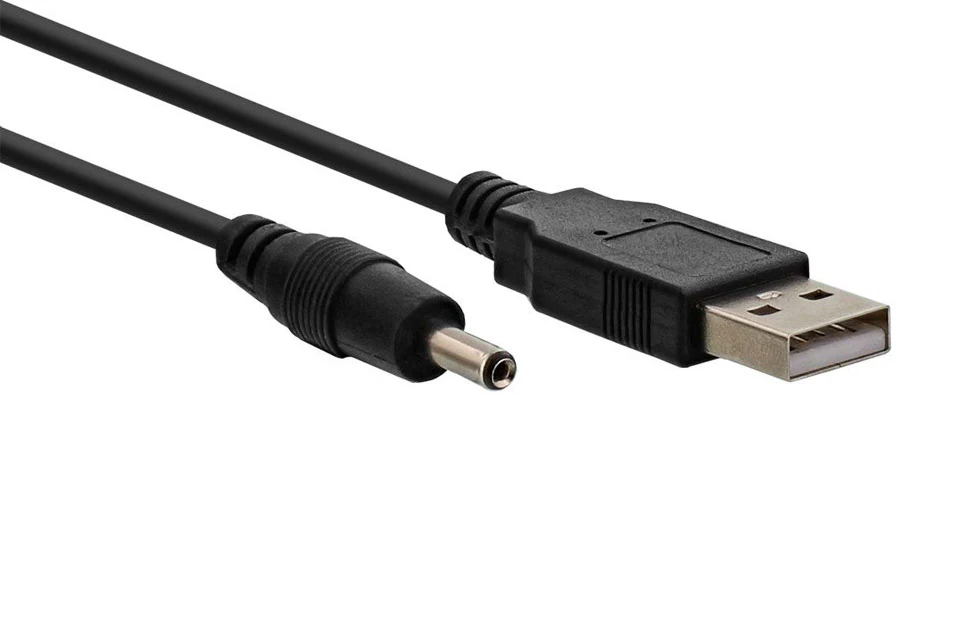

| Power Source | DC 5V (USB Power Cable included) |
| Material | Heavy-Duty ABS or Metal Alloy |
Common Use Cases
-
Home Entertainment: Connect one decoder to two TVs—one in the living room and one in the bedroom.
-
Gaming: Split your console output to a gaming monitor and a capture card for streaming or recording.
-
Business: Display your laptop screen on two separate projectors during a meeting or conference.
-
Retail/Digital Signage: Show promotional videos on two different screens within a store or showroom.
Important Notes
-
Mirror Mode Only: This device duplicates the source image. It does not support "Extended Desktop" (showing different windows on each screen).
-
Power Supply: For optimal performance, especially when using long cables, please connect the included USB power cable to a 5V power source.
-
Resolution Matching: If the two connected displays have different maximum resolutions (e.g., one 4K and one 1080p), the splitter will typically default to the lower resolution to ensure both screens display an image.
Reliable. Simple. Effective. The HDMI Splitter 1x2 is the most efficient way to expand your viewing experience across multiple screens.
