GIGABYTE B550 Gaming X V2 AMD AM4 ATX Motherboard, Supports Ryzen 5000/4000/3000 Series Processors, DDR4, 10+3 Power Phase, 2X M.2, PCIe 4.0, Front USB-C, GbE LAN, Q-Flash Plus, RGB Fusion

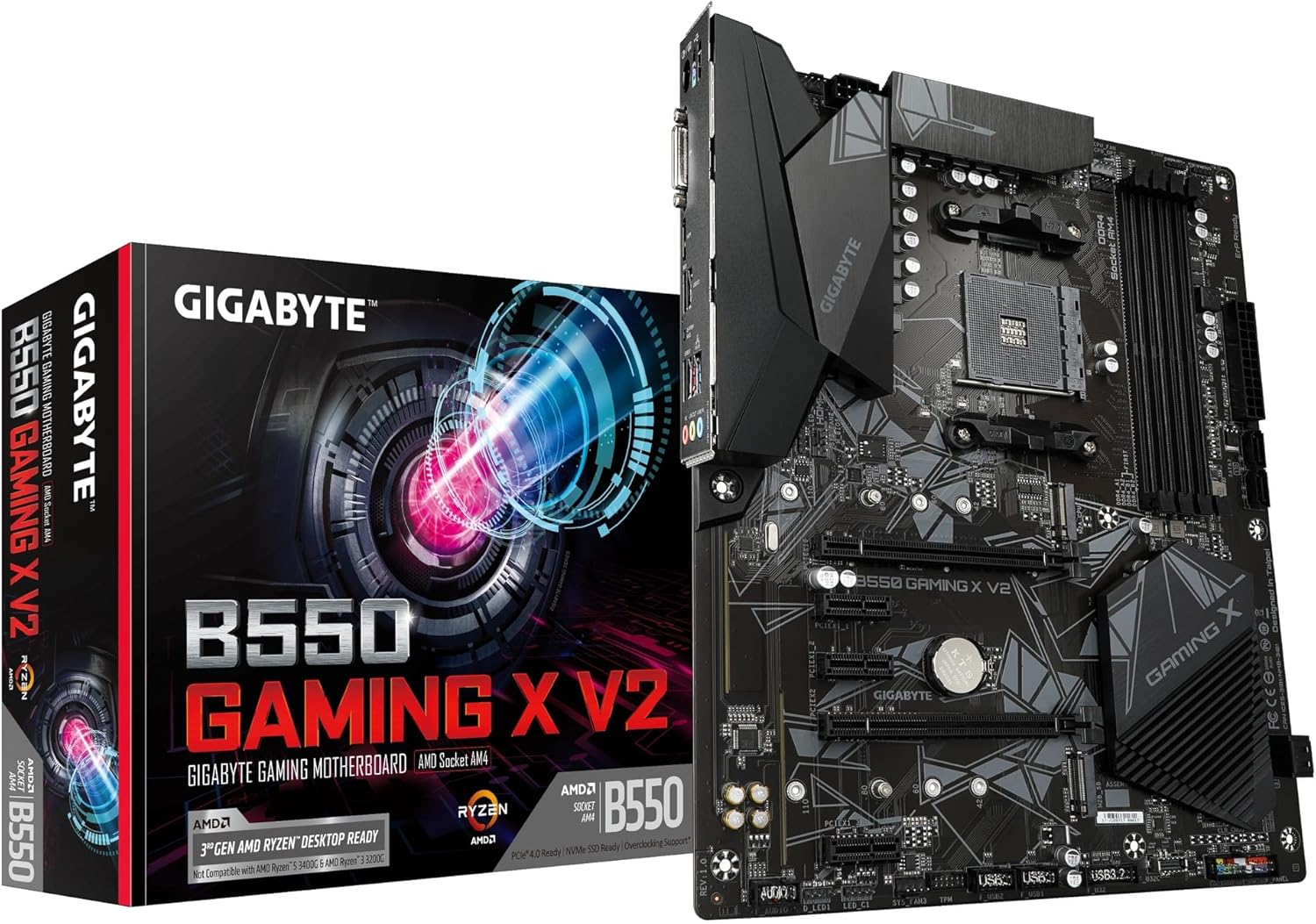

Product image 1
Product image 2

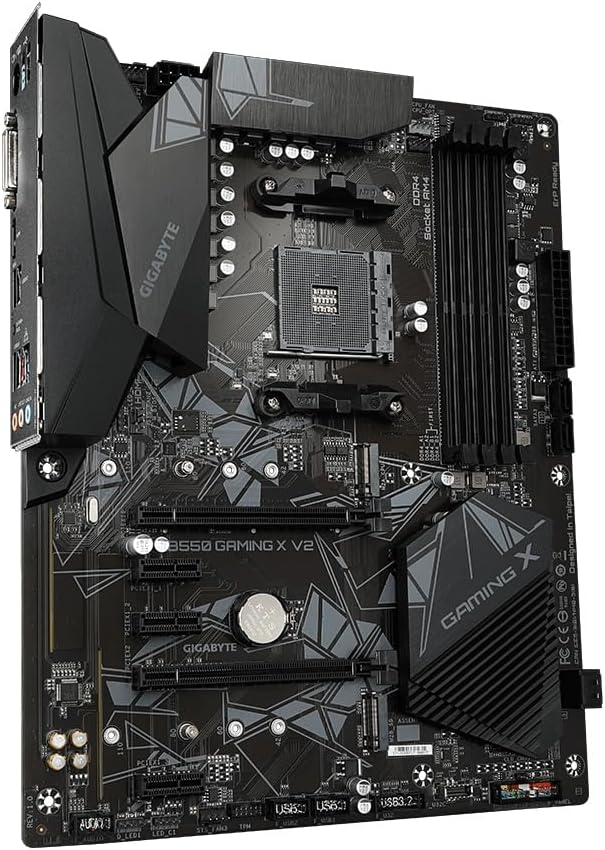

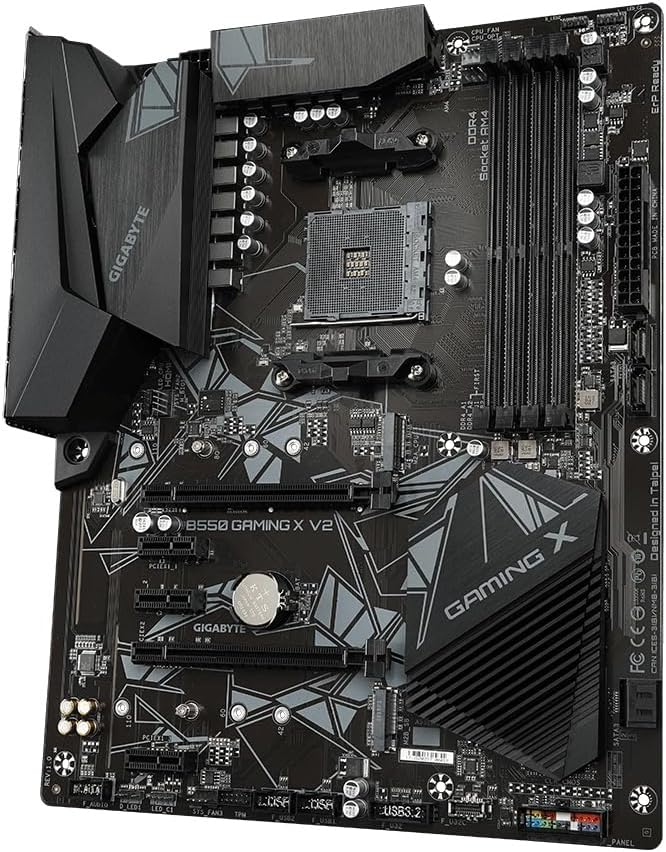

Product image 3

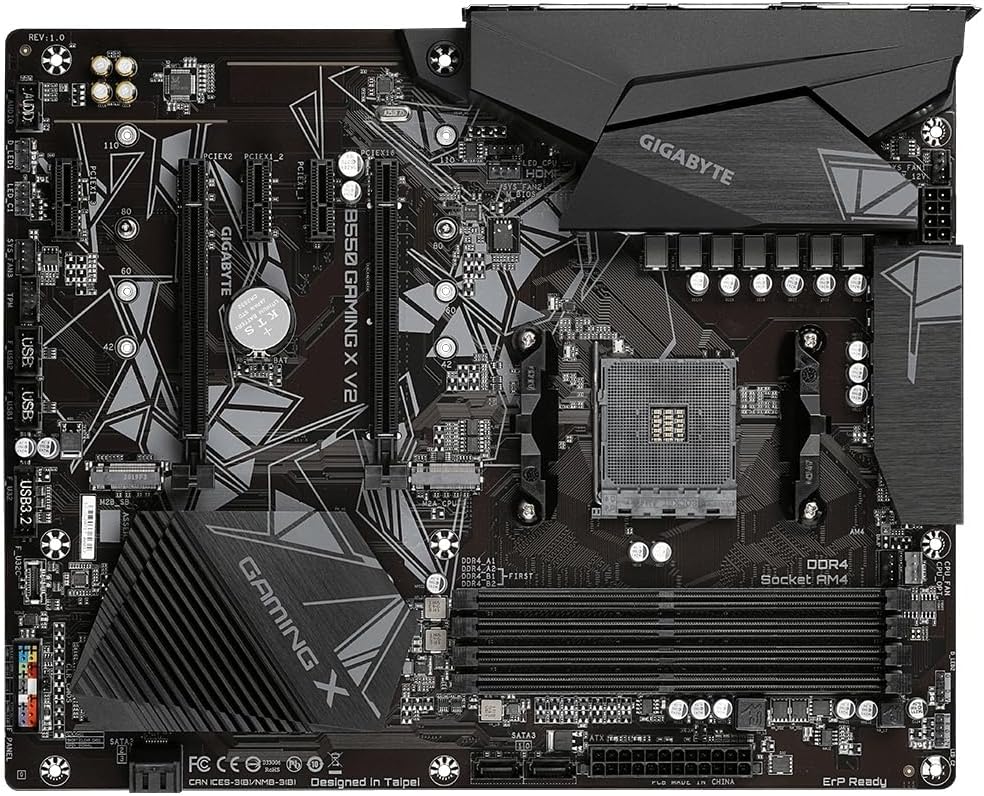

Product image 4

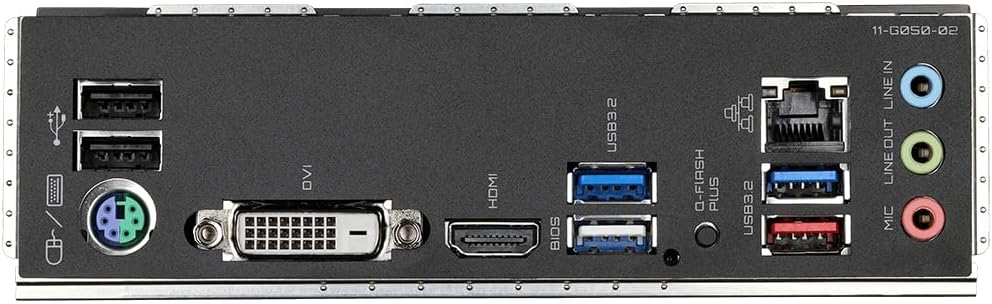

Product image 5

GIGABYTE B550 Gaming X V2 AMD AM4 ATX Motherboard, Supports Ryzen 5000/4000/3000 Series Processors, DDR4, 10+3 Power Phase, 2X M.2, PCIe 4.0, Front USB-C, GbE LAN, Q-Flash Plus, RGB Fusion

AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, Realtek GbE LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
  • Realtek GbE LAN with Bandwidth Management
  • Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • RGB FUSION 2.0 support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Key Features


SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
COOLING
LIGHTING
AUDIO
ULTRA DURABLE
GIGABYTE EXCELLENCE
1

Solid Pin Power Connector
2

DVI
3

HDMI
4

Q-Flash Plus Button
5

GbE LAN
6

Ultra Durable PCIe Slot
• PCIe® 4.0 Slot
• Running 1 x16
7

High Quality Audio Solution
8

High-End Audio Capacitors
9

RGB FUSION 2.0
• Addressable LED Header*2
• RGB LED Header*3
10

10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
11

Dual Channel DDR4, 4 DIMMs
12

Supports 3rd Gen AMD Ryzen™ Processors
13

Advanced Thermal Design
• Enlarged Surface Heatsinks
• 5 W/mK Thermal Conductivity Pad
• Pre-installed I/O Shield
14

Dual M.2 Connectors
1. 22110 M.2
• PCIe 4.0 M.2 Connector
• NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)

2. 22110 M.2
• NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)
15

Front USB 3.2 Gen1 Type-C™
16

Smart Fan 5 + FAN STOP
• 5* Fan / Water Pump Connectors
• 6* Temperature Sensors
AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi
PERFORMANCE
10*+3 Phases Digital Twin Power Design
B550 motherboard use a 10+3 phases Digital Twin Power Design with Low RDS(on) MOSFETs to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

* 5+5 phases parallel power design


Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
PCIe 4.0* Hardware Design
1.PCIe 4.0 Slot
Reinforces PCIe 4.0 x16 bandwidth with lower impedance.
* Actual support may vary by CPU
2.M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
CONNECTIVITY
USB Type-C™ Front Panel Connector
Equipped with next generation connectivity, AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 device or charging your mobile device.
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

*Actual support may vary by CPU.



Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
COOLING
Advanced Thermal Design

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.


Fan / Water Pump Connectors
Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors

Hybrid Fan Headers
■ 6 Temperature Sensors
■ 5 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.


Intelligent Fan Control Design
LIGHTING
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

* The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.



RGB Fusion 2.0 Software
RGB Fusion APP

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click

Individual control as you wish
$170.99
