NETGEAR 300 Series Gigabit Ethernet
unmanaged switches offer an array of
features that make them the ideal choice
for providing easy, reliable, and affordable
network connectivity for home and small
offices. With the convenience of plugand-play operation, these unmanaged
switches provide seamless connectivity to
multiple devices without the need for
complex configuration. The switches are
designed to be energy-efficient, ensuring
power savings while maintaining optimal
network performance.

The NETGEAR 300 Series switches are
available in 5, 8, 24, or 48 port models to
meet the demands of a growing network.
Instead of stacking multiple lower port
models and your network grows, the
higher port models ensure maximum
scalability by reducing switch congestion.
With their plug-and-play operation,
energy-efficient technology, non-blocking
switching architecture, and durable metal
case, the NETGEAR 300 Series Gigabit
Ethernet unmanaged switches offer a
cost-effective and dependable solution for
expanding network connectivity for home
and small offices.

Plug-and-Play

No configuration necessary - perfect for small-medium businesses and home office / entertainment

Highlights
• Auto-MDI/MDIX eliminates the need
for crossover cables
• LED indicators for ease of use
• Energy-efficient technology for power
savings
• Fanless design for silent operation
• Auto-negotiation for automatic
connection at the highest common
speed between switch and an end
device
• Non-blocking switching architecture
for maximum throughput at wire
speed
• 802.1p QoS for traffic/frame
prioritization
• Plug-and-play; no setup required
• Durable and rugged metal case
• Desktop or wall-mountable (5 and 8
models); GS324 is desktop,
wall-mountable, and rack-mountable
(rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
• Ideal for small office and home
networks
• Standards-based technology ensures
interoperability with any standardsbased devices in the existing network

Networking I/O	8 Total Connections Supporting up to Gigabit Ethernet
Stackable	No
Switching Bandwidth	16 Gb/s (Non-Blocking)

Networking I/O	8x RJ45 Gigabit Ethernet
Stackable	No

Protocols

Supported Protocols	Auto-MDIX/MDI MAC Filtering
Jumbo Frames Support	9216 Bytes
MAC Address Table Size	8K

Performance

Forwarding Rate	1.4 Mpps
Switching Bandwidth	16 Gb/s (Non-Blocking)
Packet Buffer	128 kB

Electrical

Power Draw	3.52 W (Active) 0.57 W (Standby)
Input Power	12 VDC at 0.5 A
Power Supply Type	External

General

Storage Conditions	-4 to 158°F / -20 to 70°C at 5 to 95% Humidity
Material of Construction	Metal
Indicator Lights	Yes
Rack Mountable	No
Dimensions	6.22 x 3.98 x 1.14" / 158 x 101 x 29 mm
Weight	0.84 lb / 0.38 kg

Unmanaged Switch

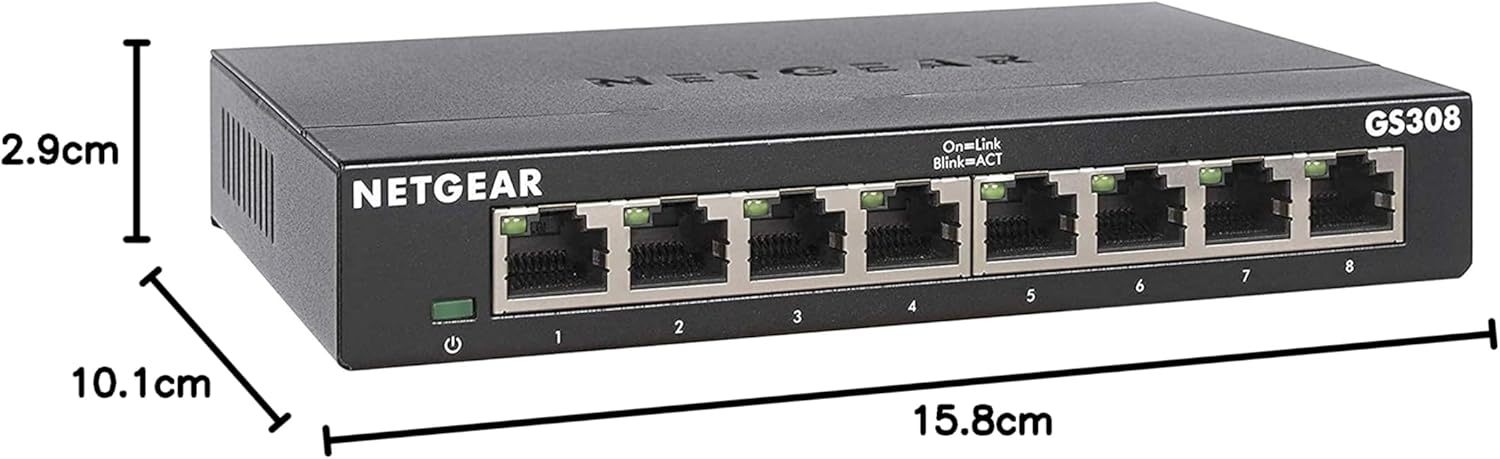

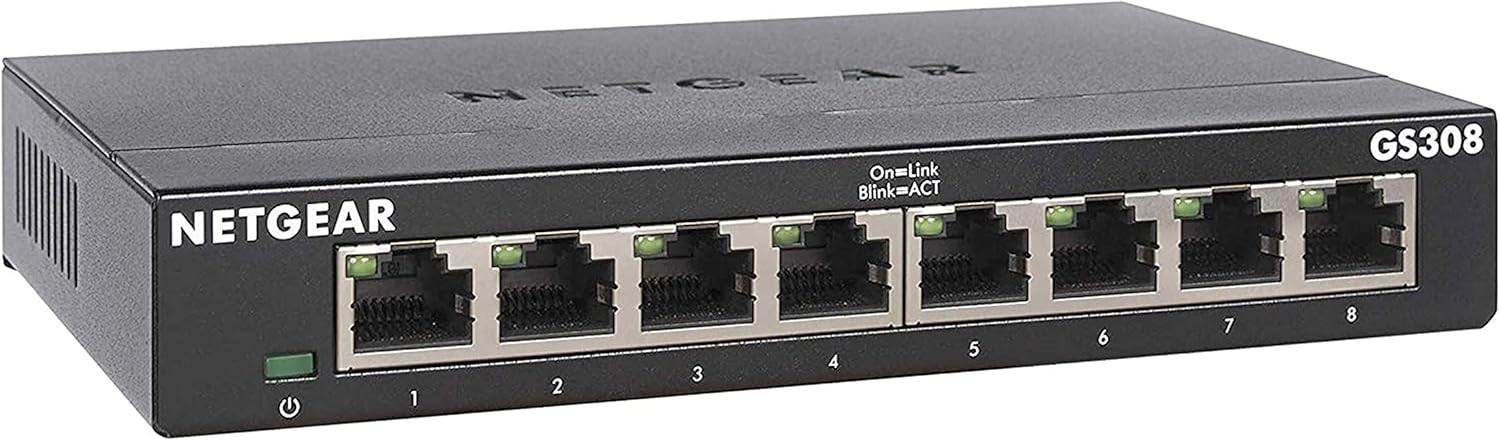

NETGEAR 8-Port Gigabit Ethernet Unmanaged Switch GS308-300PES Home Network Hub, Office Ethernet Splitter, Plug-and-Play, Silent Operation, Desktop or Wall Mount

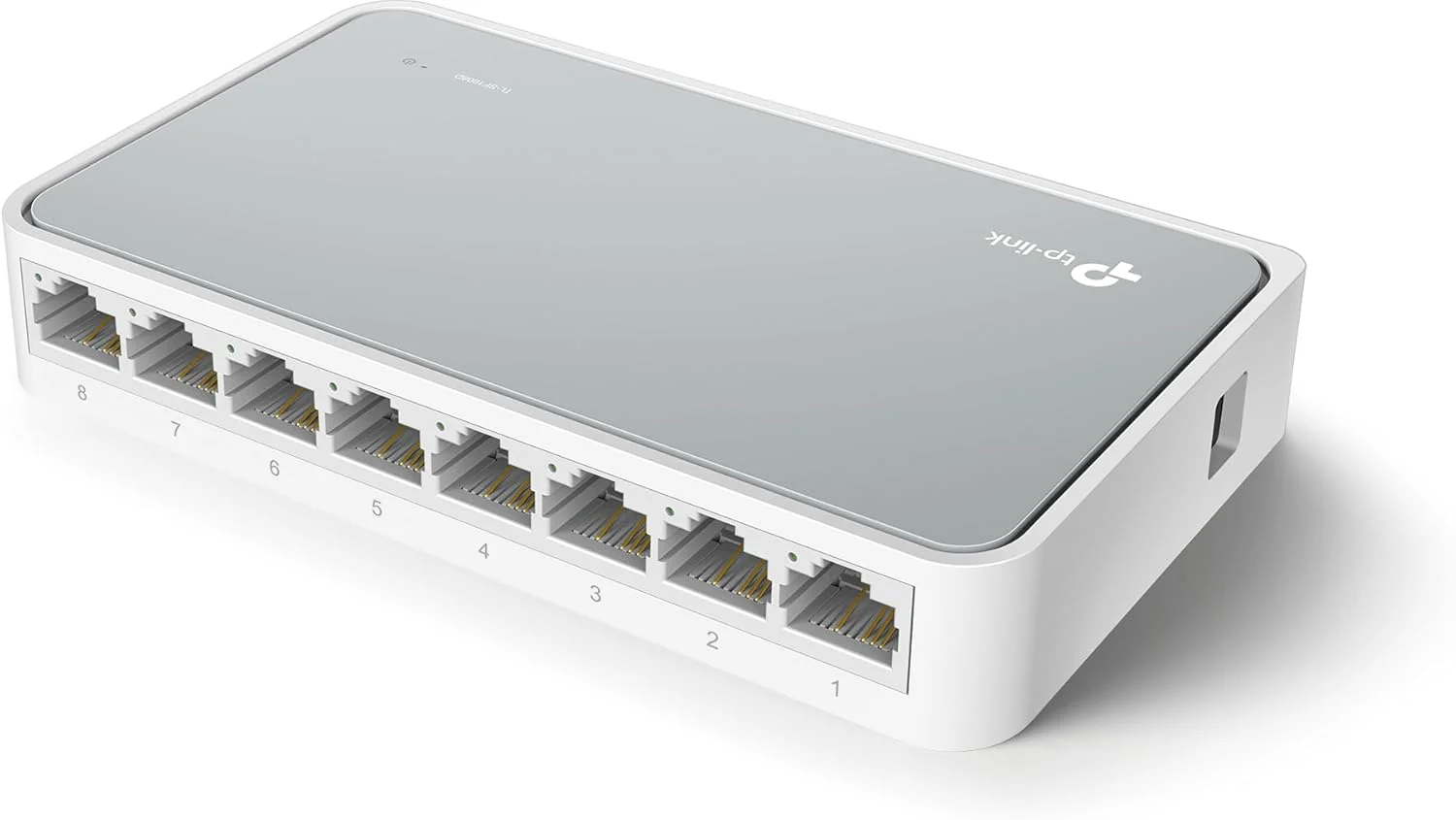

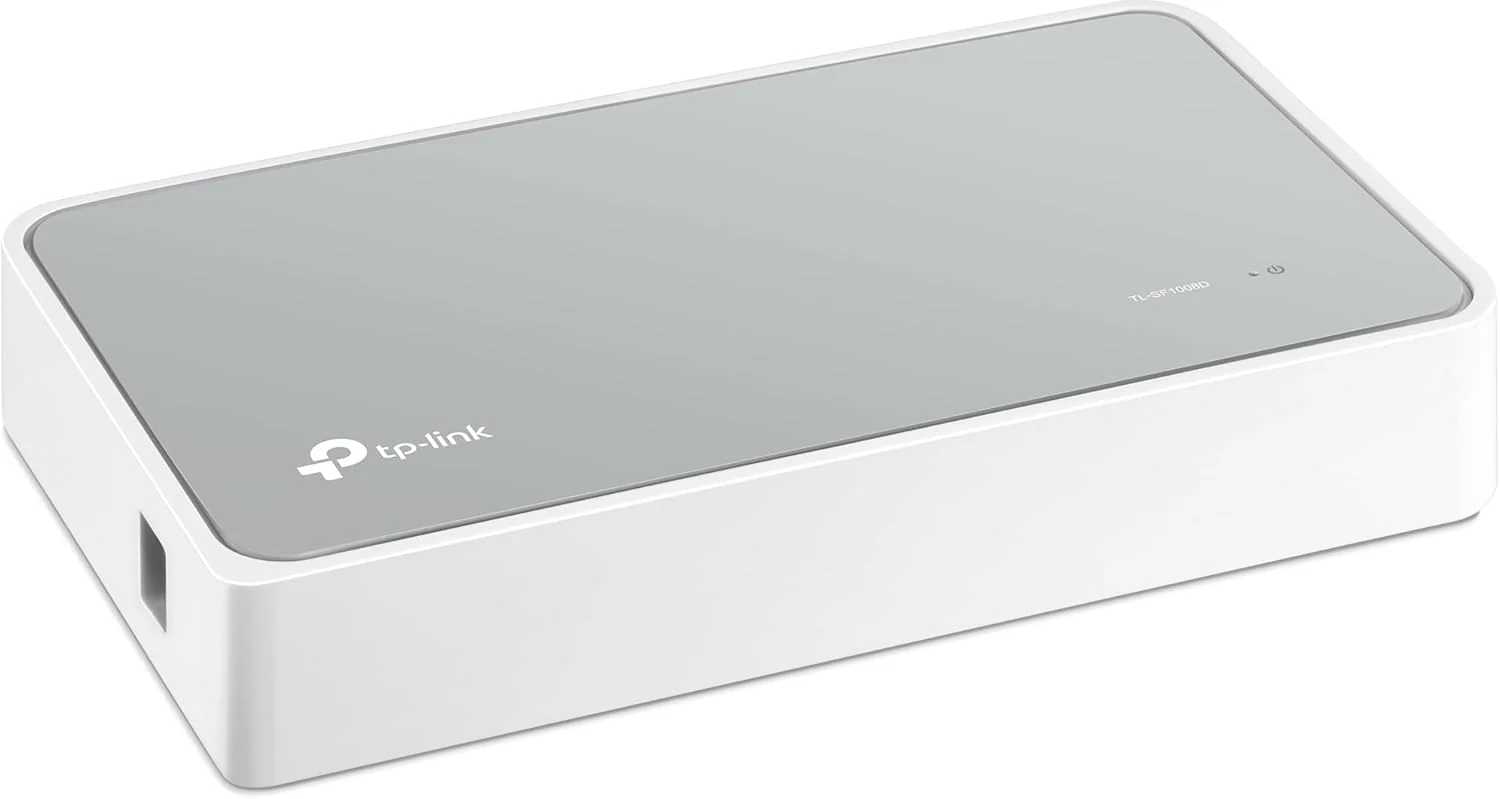

TP-Link 8 Port 10/100Mbps Fast Ethernet Switch (TL-SF1008D) - Desktop Splitter/Hub, Plug and Play, Fanless Quiet, Desktop Design, Green Technology, Unmanaged, White
